101AV Security Dome Camera 1080P 1920x1080 True Full-HD 4in1(TVI, AHD, CVI, CVBS) 3.6mm Fixed Lens 2.4 Megapixel STARVIS Image Sensor in/Outdoor Smart IR DWDR Surveillance Home Office (Charcoal)
Uр Tо 60% оƒƒ 101AV Security Dome Camera 1080P 1920x1080 True Full-HD 4in1(TVI, AHD, CVI, CVBS) 3.6mm Fixed Lens 2.4 Megapixel STARVIS Image Sensor in/Outdoor Smart IR DWDR Surveillance Home Office (Charcoal) A quick review
So you can check out the other reviews at Amazon.com
only with $ 33.50
| Indoor/Outdoor Usage | Outdoor |
| Brand | 101 AV Inc |
| Connectivity Technology | Wireless |
| Room Type | Office |
| Power Source | Ac/dc |
- 4 IN 1 (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL) HD technology produces 1080P Full-HD Video with Sharp and Detailed Images
- 1/2.9″ SONY STARVIS CMOS Image Sensor with 2.4 Megapixel Resolution; Multi-Axis for Wall or Ceiling Mounting
- STARVIS increases the light utilization efficiency over a wide range of wavelengths, enhancing sensitivity in both the visible light and the near infrared light
- Built-in 3.6 mm Fixed Lens 20 meters IR range; 18pcs IR infrared LEDs; Day/Night; IP66 weatherproof; Vandal proof
- WDR (Wide Dynamic Range) Function; IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night
Product Description
 | |||
|---|---|---|---|
Product Description
This 4in1 professional IR dome security camera employs 1/2.9″ SONY STARVIS CMOS Image Sensor with 2.4 Megapixel Resolution and an advanced circuit design. It adopts advanced image processing technology. The resolution is as high as 1080P, which ensures clear and bright pictures.
It has OSD Menu that can change the 4 different video output HD-TVI, HD-AHD, HD-CVI, and CVBS(700TVL) and adjust the video setting. It also has WDR function, built-in 3.6mm fixed lens, effectively extend your observation range. With 18 pcs IR infrared LEDs, it has 20 meters IR range, can change from color to black automatically and take clear picture during both day and night time.

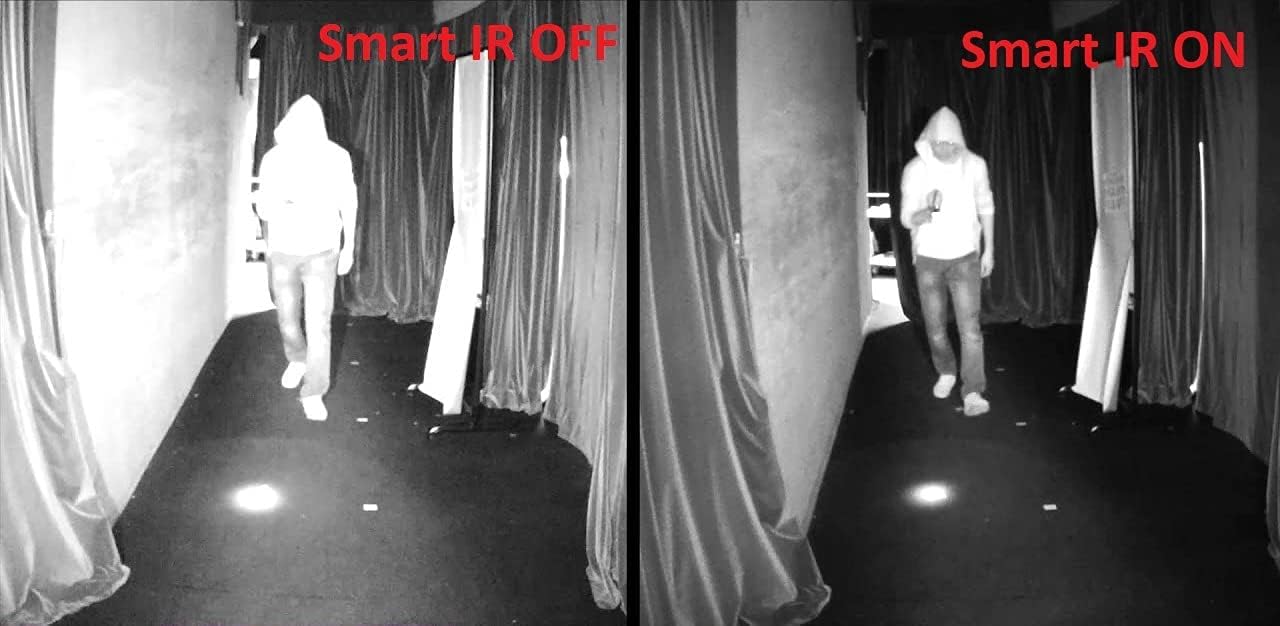

The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It’s easy to install. It can protect your office or home effectively.
**Camera default setting is HD-TVI. Please switch to the correct/same mode by joystick or OSD manual if your DVR system is not HD-TVI.
You can find the instruction from camera user manual.
Camera Default Setting is HD-TVI. User Friendly Joystick configuration button for video format switching and OSD (On Screen Display) menu access.
Push down on the joystick button to access the OSD menu to setup/fine tune the video performance and powerful function of the camera.
- Switch the output signal format by the joystick button (within 10 sec of power on)
- SD CVBS: Push the joystick button towards the left for 5 seconds then release
- HD-TVI: Push the joystick button towards the right for 5 seconds then release
- HD-AHD: Push the joystick button up for 5 seconds then release
- HD-CVI: Push the joystick button down for 5 seconds then release
Specification
Model# FDT-36
Image Sensor: 1/2.9" Sony 2.4 Megapixel STARVIS CMOS Sensor
Effective Pixels: 1930(H)x1088(V)
Signal System: NTSC
Resolution: 1080p/ 960H (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL)
Mini Illumination: 0.001 Lux / F1.2
Lens: 3.6mm Fixed Lens
WDR: On/Off
White Balance / Gain Control: Auto
S/N Ratio: More than 50 dB
Synchronous System: Internal
Video Output: AHD/CVI/CVBS/TVI
IR Power On: Photodiode AUTO Control
Weatherproof: IP66
Operation Temp: 14°F~122°F (-10°C~50°C)
Storage Temp: 14°F~140°F (-10°C~60°C)
Dimensions (mm): 94(W) x 69(H)
Power: DC12V/ 500mA
IR Range: 20m IR Range w/ 18pcs IR LEDs
Infrared Lamps: Night/Day ON/OFF
Weight: 400g
What's in the box?
4 IN 1 True-HD IR Dome security camera x 1; Screws
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Model: FDT-36 | Model: FDT-36W | Model: FDT-28M | Model: FDT-28 | Model: FDT-28W | Model: HDBH-102 | |
| Image Sensor | SONY STARVIS Sensor | SONY STARVIS Sensor | SONY STARVIS Sensor | SONY STARVIS Sensor | SONY STARVIS Sensor | Converts Analog HD TVI/AHD/CVI/CVBS signal from BNC to HDMI |
| Lens | 3.6mm | 3.6mm | 2.8mm | 2.8mm | 2.8mm | HD Input (BNC) x 1 & Loop Out (BNC) x 1 |
| Resolusion | 1080P | 1080P | 1080P | 1080P | 1080P | HD Input (BNC) x 1 & Loop Out (BNC) x 1 |
| Video Output | TVI / AHD / CVI / CVBS | TVI / AHD / CVI / CVBS | TVI / AHD / CVI / CVBS | TVI / AHD / CVI / CVBS | TVI / AHD / CVI / CVBS | Lossless real time non-compression conversion |
| IR Range | 20 meters | 20 meters | 20 meters | 20 meters | 20 meters | Plug and Play, no driver needed |
| Weatherproof | ✓ | ✓ | ✓ | ✓ | ✓ | Up to 100,000 life time hours of MTBF |
| Power | DC 12V | DC 12V | DC 12V | DC 12V | DC 12V |
